Doubles Matchmaker

Match Screen

Select the green area to jump to the corresponding section.

[diagram]
menu menu menu menu menu menu
[diagram]

Draw / Undo button

  • The downward icon is the undo button. It deletes the last draw result.
  • The upward icon is the draw button, which adds a new draw for the next round.
  • Press and hold Undo to configure confirmation settings. By default, confirmation is only required if match results or start times have already been entered.
[diagram]
[diagram]

Round Display and Navigation

  • "Round N" indicates that the draw has been completed until the Nth round.
  • The downward icon moves to the previous round.
  • The upward icon moves to the next round.
[diagram]

Player Name Display

  • Top left is the entry number. This is the player's serial number.
  • Numbers 1 to 99 are default names for unset players. These placeholders have no personal attributes like rating or gender.
  • The bottom left indicates gender (Blue: Male, Red: Female, Hidden: Undecided). This appears when 'Show rating' is enabled in Settings.
  • Press and hold to drag and drop players to swap opponents within the same round.
[diagram]

Pair display

  • Icons indicate if a Fixed Pair or Exclusive Pair has been set.
    • [diagram]

    Court Name & Match Result

    • Circled numbers are court names.
    • Press and hold the court name to drag and drop all four players to another court.
    • Tap the court name to open the match result dialog. See here for details on entering results.
    • Tap the arrow to the right of the title to toggle the display of match results and times.
    • If the start time is not entered when tapping the End button, it defaults to 20 minutes prior. Tap the time to change it.

    勝敗入力方法

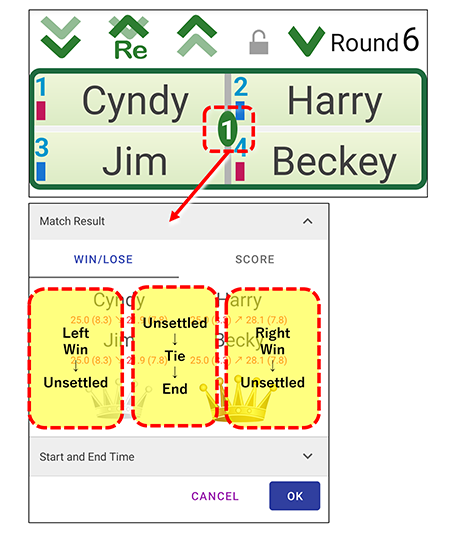

    1. Tap the court number on the match list screen.
    2. A dialog will pop up asking you to select the winning team.
    3. Tap the winning team. A crown icon will appear.
    4. A draw is indicated when both crowns are colored. Tap again to return to the un-entered state.
    5. Tap OK to confirm the result.
    • It is a good idea to agree beforehand on what kind of situation is considered a win/lose/draw.
    • The order of entry is optional, but the rate will be calculated as if the matches were played in order from the first round.
    [diagram]
    [diagram]

    Match result input dialog

    [diagram]

    Switching between Set and Score Entry Modes

    [diagram]
    [diagram]

    Switching the screen display layout

    • Pinch in or out to change the display layout and show more players.
    • There are two zoom levels on phones and three on tablets.
